| Place of Origin: | China |
| Hàng hiệu: | JIMA |
| Chứng nhận: | SGS, ISO,Reach, RoHS，CQC |
| Model Number: | RCU001 |
| Minimum Order Quantity: | 500Kg |
|---|---|
| Giá bán: | Negotiations |
| Packaging Details: | Wooden carton |
| Delivery Time: | 7-15 days |
| Supply Ability: | 500 Ton per month |
| thickness: | 0.05mm | temper: | O，soft |
|---|---|---|---|
| inner diameter: | 40mm，76m，152mm | width: | 2mm-400mm |
| color: | red copper | Grade: | C1100/C1020/C1220 |
| Cu（Min): | 99.95% | standard: | GB/T18813-2002，GB/T5231-2001 |
| Surface: | mill finish | ||
| Làm nổi bật: | expanded copper foil,soft copper sheet |
||

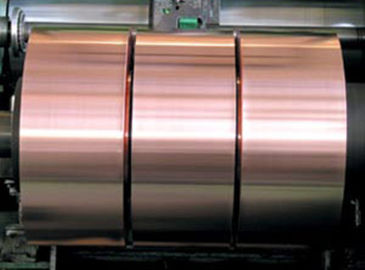

0.05mm thickness C1100 SOFT O temper copper foil for battery production
Quick Details
| applicatiom:C1100 SOFT copper foil for battery production |
| thickness:0.05mm |
| width:2mm-400mm |
| material:red copper |
| grade:C1100/C1020/C1220 |
| Conductivity(20C):min98.20%IACS |
| Cu(Min):99.95% |
| Vickers hardness:45-65 |
| shape:thin copper foil |
| temper:soft |
| standard:GB/T18813-2002,GB/T5231-2001 |
| Pacakge:wooden pallets,corrugated paper,paper angle protector |
| MOQ:500KGS |
| Surface:mill finish |
Copper Copper Foil Size And Tolerance (mm)
| Thickness | Thickness Tolerance | Width | Width Tolerance |
| 0.01~0.015 | ± 0.002 | 5 ~ 610 | ± 0.1 |
| 0.018~0.10 | ± 0.003 | 5 ~ 610 | |
| 0.10~0.50 | ± 0.005 | 5 ~ 610 |
Copper Copper Foil Physical Property
1. Density: 8.9g/cm3
2. Electrical conductivity (20°C): min 90%IACS for annealed to temper
3. min 80%IACS for rolled to temper
4. Thermal conductivity (20°C): 610W/(m°C)
5. Elastic modulus: 118000N/m
6. Softening temperature: ≥380°C
Chemical Composition
| C1100 Copper foil Chemical composition(%) | ||||||||
| Element | Cu+Ag | Sn | Zn | Pb | Ni | Fe | As | O |
| Standard Value | ≥99.90 | ≤0.002 | ≤0.005 | ≤0.005 | ≤0.005 | ≤0.005 | ≤0.002 | ≤0.06 |
Copper Copper Foil Applicantion
1. Widely used for copper foil for transformers,
2. digital cameras, cell phones, DVD, HVD precision electronic products,
3. computer communications, wires, cables,
4. high-frequency transmission, isolation, electromagnetic interference.
5 Circuit turns the path,
6. because of excellent electrical conductivity of copper, used for low attenuation requirements, performance is better than copper foil mylar and other high-frequency attenuation: 10-25GHz.
Package :wooden pallet
RFQ:
Q1. What's imformation do you need before quote?
A: yes,Temper,width,thickness, and order quantity
Q2: what is your minimum order quantity?
A: Yes,500kgs
Q3: what is your deliver time ?
A: 7-15days
Q4: what is your normal warranty period?
A:12months
Q5: are you manufacturer or trading company ?
A: manufacturer,we have our own factory.welcome to visit us.
